Description

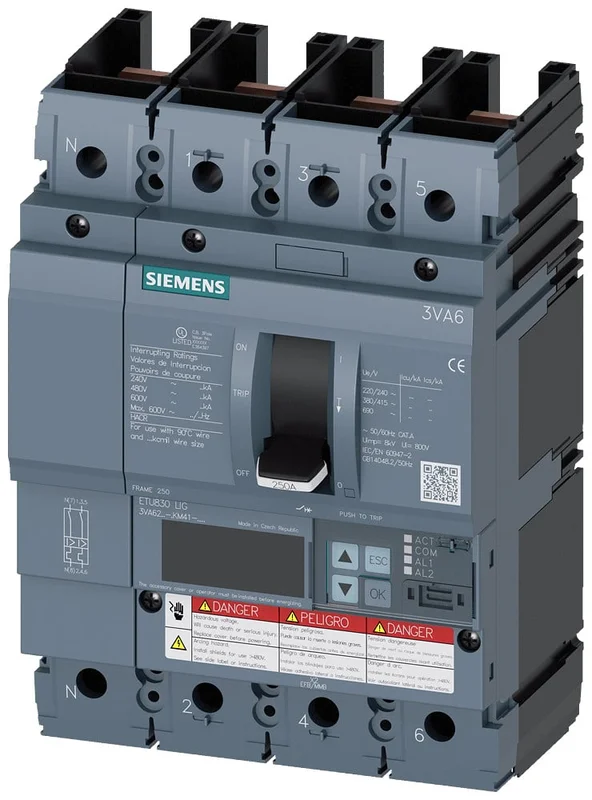

Aanvullende informatiecircuit breaker 3VA6 UL Frame 250 breaking capacity class M 35 kA @ 480 V 4-pole, line protection ETU830, LIG, In=100 A overload protection, 100% rated Ir=40 A…100 A short-circuit protection Ii=1.5…12 x In ground-fault protection Ig=0.2…1 x In, tg=0.
| Klasse | Vermogensschakelaar voor trafo-, generator- en installatiebeveiliging |
| Merk | Siemens |
| Beschermingsgraad (IP) | IP40 |
| Aantal polen | 4 |
| Compleet apparaat incl. beveiligingsunit | Ja |
| Motoraandrijving optioneel | Ja |
| Uitvoering van het bedieningselement | Tuimelaar |
| Motoraandrijving geïntegreerd | Nee |
| Nom. continustroom Iu | 100 A |
| Met geïntegreerde onderspanningsspoel | Nee |
| Omegarailmontage optioneel | Nee |
| Geïntegreerde aardsluitingsbeveiliging | Ja |
| Nom. afschakelvermogen Icu bij 400 V, 50 Hz | 55 kA |
| Apparaatbouwvorm | Inbouwapparaat vaste inbouw techniek |
| Aansluitwijze hoofdstroomcircuit | Overig |
| Aantal hulpcontacten als verbreekcontact | 0 |
| Aantal hulpcontacten als maakcontact | 0 |
| Aantal hulpcontacten als wisselcontact | 0 |
| Positie aansluiting hoofdstroomcircuit | Overig |
| Instelbereik overbelastingsbeveiliging | 40 – 100 A |
| Instelbereik onvertraagde kortsluitbeveiliging | 150 – 1200 A |
| Met tripcontact | Nee |
| Nom. spanning | 690 – 690 V |
| Verliesvermogen | 6.7 W |
| Geschikt voor DIN-rail (Omega-rail) montage | Nee |
| Categorieën | Signaalapparaten |
